HC9100 高低压电性能综合测试机
- 最大支持48模产品测试；
- 单机最大1280通道，可多台联机工作通道可达10000以上；
- 模块化设计，可扩展32通道扫描卡或者FUNC卡，扩展性强；
- 图形化系统软件，测试程序编写、测试数保存方便；
- 测试结果可转成Excel 格式，或上传至服务器；
- 用户账户权限管理；
- 微欧级电阻测试；
- TVS测试、二极管测试；
- NTC电阻测试；
- 温度测量；
- 开短路测试；
- 瞬间短断路测试
- 元件网络学习功能；
- 特殊产品定制化服务；

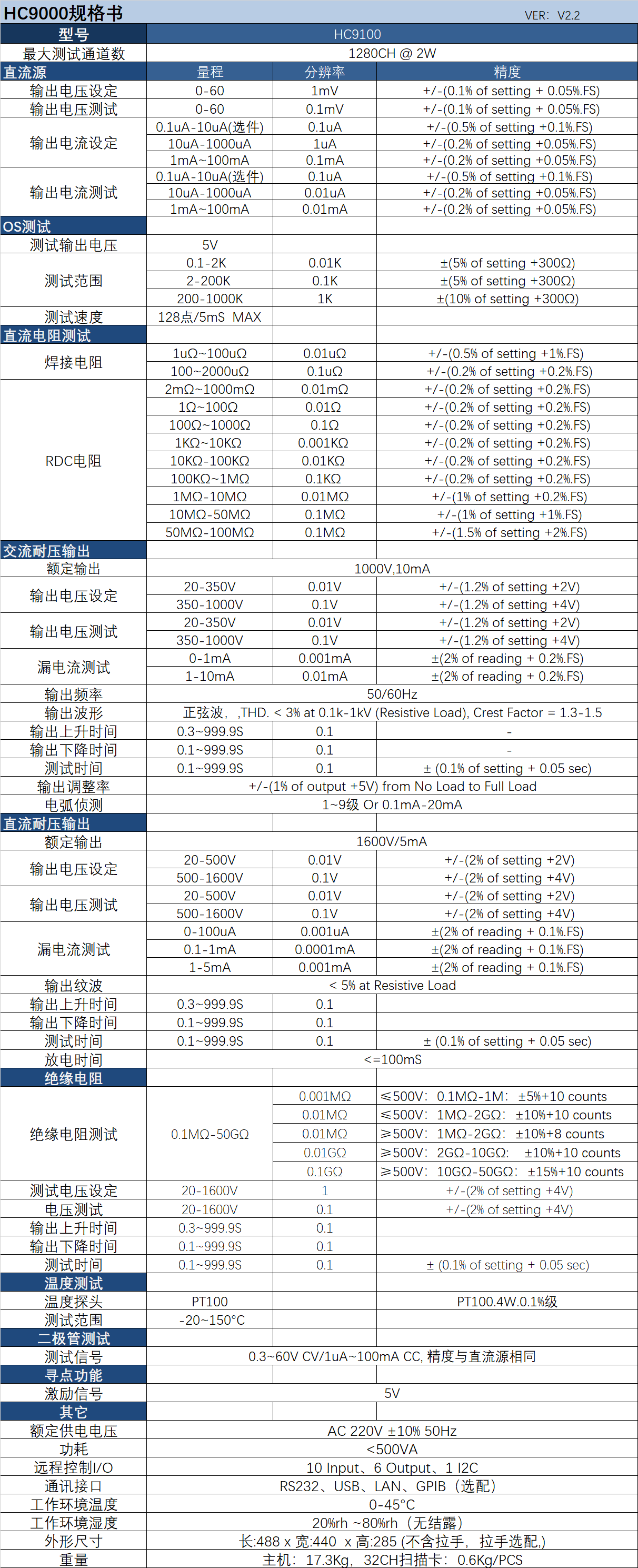

| HC9100规格书 VER：V2.6 | |||
| 型号 | HC9100 | ||
| 最大测试通道数 | 1280CH @ 2W | ||
| 直流源 | 量程 | 分辨率 | 精度 |
| 输出电压设定 | 0-60 | 1mV | +/-(0.1% of setting + 0.05%.FS) |
| 输出电压测试 | 0-60 | 0.1mV | +/-(0.1% of reading + 0.05%.FS) |
| 输出电流设定 | 0.1uA-10uA(选件) | 0.1uA | +/-(0.5% of setting +0.1%.FS) |
| 10uA-1000uA | 1uA | +/-(0.2% of setting +0.05%.FS) | |
| 1mA~100mA | 0.1mA | +/-(0.2% of setting +0.05%.FS) | |
| 输出电流测试 | 0.1uA-10uA(选件) | 0.1uA | +/-(0.5% of reading +0.1%.FS) |
| 10uA-1000uA | 0.01uA | +/-(0.2% of reading +0.05%.FS) | |
| 1mA~100mA | 0.01mA | +/-(0.2% of reading +0.05%.FS) | |
| OS测试 | |||
| 测试输出电压 | 5V | ||
| 测试范围 | 0.1-2K | 0.01K | ±(5% of reading +300Ω) |
| 2-200K | 0.1K | ±(5% of reading +300Ω) | |
| 200-1000K | 1K | ±(10% of reading +300Ω) | |
| 测试速度 | 128点/5mS MAX | ||
| 直流电阻测试 | |||
| 焊接电阻 | 1uΩ~100uΩ | 0.01uΩ | +/-(0.5% of reading +1%.FS) |
| 100~2000uΩ | 0.1uΩ | +/-(0.2% of reading +0.2%.FS) | |
| RDC电阻 | 2mΩ~100mΩ | 0.01mΩ | +/-(0.2% of reading +0.2%.FS) |
| 100mΩ~1Ω | 0.1mR | +/-(0.2% of reading +0.2%.FS) | |
| 1Ω~100Ω | 0.01Ω | +/-(0.2% of reading +0.2%.FS) | |
| 100Ω~1000Ω | 0.1Ω | +/-(0.2% of reading +0.2%.FS) | |
| 1KΩ~10KΩ | 0.001KΩ | +/-(0.2% of reading +0.2%.FS) | |
| 10KΩ-100KΩ | 0.01KΩ | +/-(0.2% of reading +0.2%.FS) | |
| 100KΩ~1MΩ | 0.1KΩ | +/-(0.2% of reading +0.2%.FS) | |
| 1MΩ-10MΩ | 0.01MΩ | +/-(1% of reading +0.2%.FS) | |
| 10MΩ-50MΩ | 0.1MΩ | +/-(1% of reading +1%.FS) | |
| 50MΩ-100MΩ | 0.1MΩ | +/-(1.5% of reading +2%.FS) | |
| 交流耐压输出 | |||
| 额定输出 | 1000V,10mA | ||
| 输出电压设定 | 20-350V | 0.01V | +/-(1.2% of setting +2V) |
| 350-1000V | 0.1V | +/-(1.2% of setting +4V) | |
| 输出电压测试 | 20-350V | 0.01V | +/-(1.2% of reading +2V) |
| 350-1000V | 0.1V | +/-(1.2% of reading +4V) | |
| 漏电流测试 | 0-1mA | 0.001mA | ±(2% of reading + 0.2%.FS) |
| 1-10mA | 0.01mA | ±(2% of reading + 0.2%.FS) | |
| 输出频率 | 50/60Hz | ||
| 输出波形 | 正弦波，,THD. < 3% at 0.1k-1kV (Resistive Load), Crest Factor = 1.3-1.5 | ||
| 输出上升时间 | 0.3~999.9S | 0.1S | - |
| 输出下降时间 | 0.1~999.9S | 0.1S | - |
| 测试时间 | 0.1~999.9S | 0.1S | ± (0.1% of setting + 0.05 sec) |
| 输出调整率 | +/-(1% of output +5V) from No Load to Full Load | ||
| 电弧侦测 | 1~9级 Or 0.1mA-20mA | ||
| 直流耐压输出 | |||
| 额定输出 | 1600V/5mA | ||
| 输出电压设定 | 20-500V | 0.01V | +/-(2% of setting +2V) |
| 500-1600V | 0.1V | +/-(2% of setting +4V) | |
| 输出电压测试 | 20-500V | 0.01V | +/-(2% of reading +2V) |
| 500-1600V | 0.1V | +/-(2% of reading +4V) | |
| 漏电流测试 | 0-100uA | 0.001uA | ±(2% of reading + 0.1%.FS) |
| 0.1-1mA | 0.0001mA | ±(2% of reading + 0.1%.FS) | |
| 1-5mA | 0.001mA | ±(2% of reading + 0.1%.FS) | |
| 输出上升时间 | 0.3~999.9S | 0.1 | |
| 输出下降时间 | 0.1~999.9S | 0.1 | |
| 测试时间 | 0.1~999.9S | 0.1 | ± (0.1% of setting + 0.05 sec) |
| 放电时间 | <=100mS | ||
| 电弧侦测 | 1~9级 Or 0.1mA-10mA | ||
| 绝缘电阻 | |||
| 绝缘电阻测试 | 0.1MΩ-50GΩ | 0.001MΩ | ≤500V：0.1MΩ-1M：±5%+10 counts |
| 0.01MΩ | ≤500V：1MΩ-2GΩ：±10%+10 counts | ||
| 0.01MΩ | ≥500V：1MΩ-2GΩ：±10%+8 counts | ||
| 0.01GΩ | ≥500V：2GΩ-10GΩ: ±10%+10 counts | ||
| 0.1GΩ | ≥500V：10GΩ-50GΩ：±15%+10 counts | ||
| 测试电压设定 | 20-1600V | 1V | +/-(2% of setting +4V) |
| 电压测试 | 20-1600V | 0.1V | +/-(2% of reading +4V) |
| 输出上升时间 | 0.3~999.9S | 0.1S | |
| 输出下降时间 | 0.1~999.9S | 0.1S | |
| 测试时间 | 0.1~999.9S | 0.1S | ± (0.1% of setting + 0.05 sec) |
| 直流电压测试 | |||
| 低量程（Ir>500M） | 0-1V | 0.01mV | ±(0.02% of reading + 0.05%.FS) |
| 高量程（Ir=10M） | 1-100V | 0.1mV | ±(0.02% of reading + 0.01%.FS) |
| 测试速度 | SLOW=110mS,MAX=23mS | ||
| 温度测试 | |||
| 温度探头 | PT100 | PT100.4W.0.1%级 | |
| 测试范围 | -20~150°C | ||
| 二极管测试 | |||
| 测试信号 | 0.3~60V CV/1uA~100mA CC, 精度与直流源相同 | ||
| 寻点功能 | |||
| 激励信号 | 5V | ||
| 其它 | |||
| 额定供电电压 | AC 220V ±10% 50Hz | ||
| 功耗 | <500VA | ||
| 远程控制I/O | 10 Input、6 Output、1 I2C | ||
| 通讯接口 | RS232、USB、LAN、GPIB（选配） | ||
| 工作环境温度 | 0-45°C | ||
| 工作环境湿度 | 20%rh ~80%rh（无结露） | ||
| 外形尺寸 | 长:488 x 宽:440 x 高:285 (不含拉手，拉手选配,) | ||
| 重量 | 主机：17.3Kg，64CH扫描卡：0.88Kg/PCS | ||
